Roller Blinds Installation
Choose your fit type
Select a fit type below to view the correct information.
Recess Fit Guide

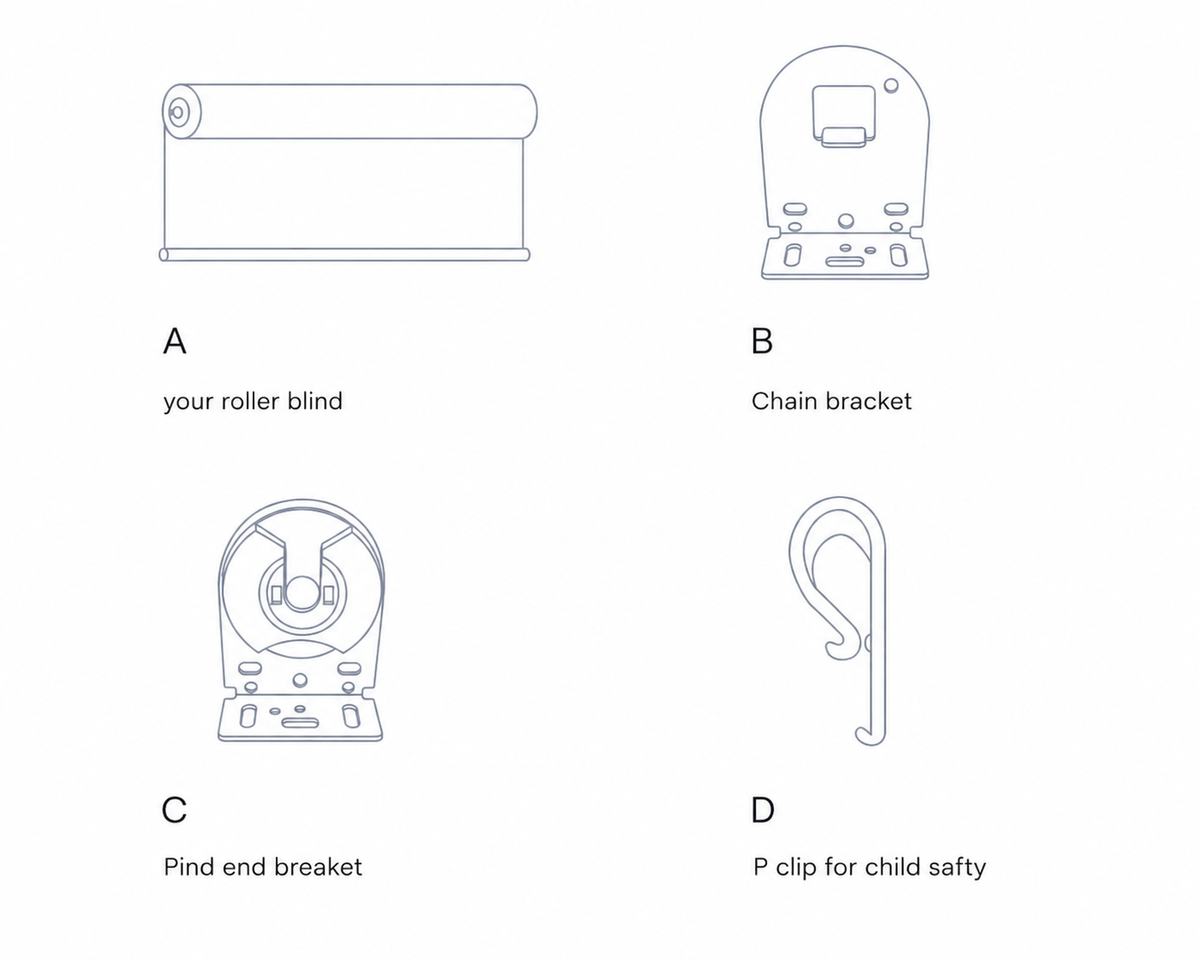

Step 1 – Preparation
Check and unpack your roller blind custom kit, make sure to put roller blind on a clean floor

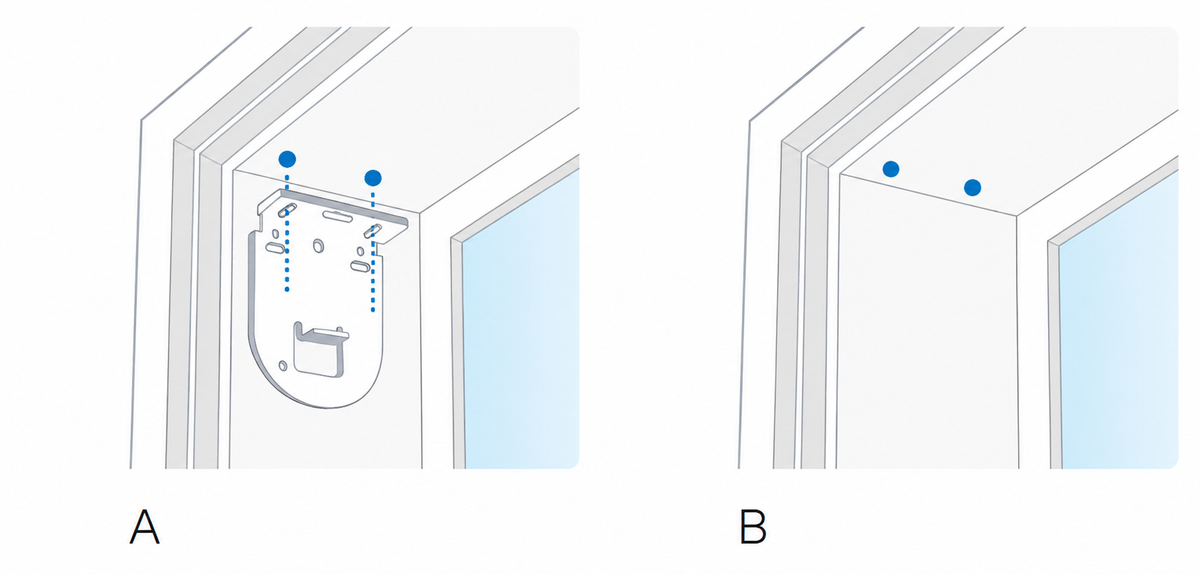

Step 2 – Mark the position
Take your pencil and both brackets. Lift each bracket up into position and mark two level dots where the screws will attach the bracket to the frame.

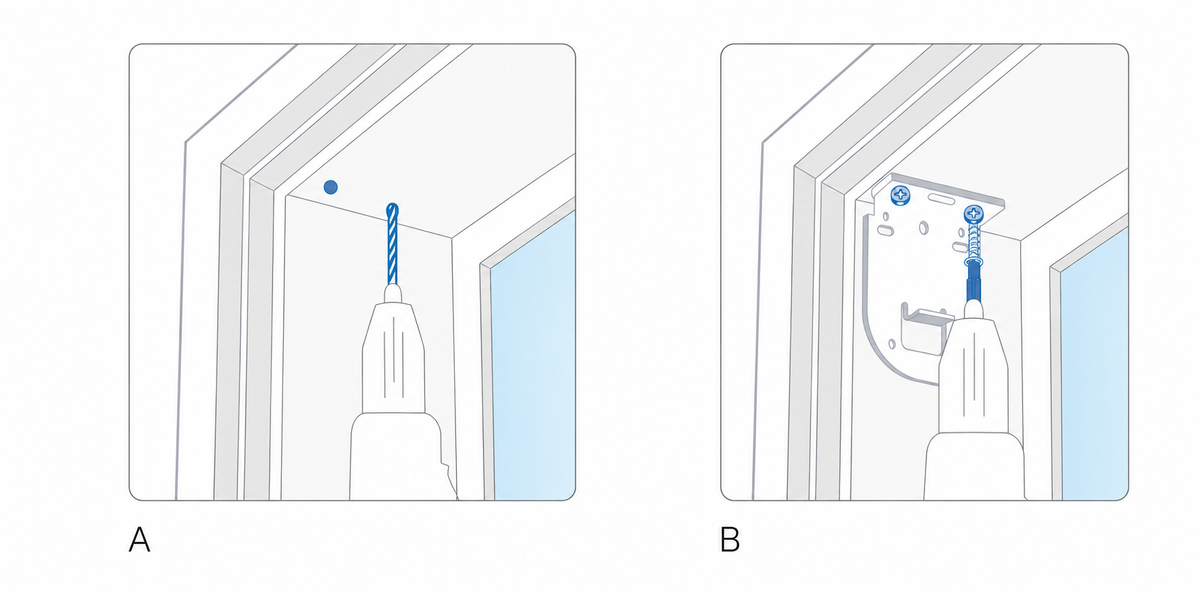

Step 3 – Install bracket
Pre-drill 2 holes where you marked the two pencil dots.
Pick up the chain drive bracket and position it on the side of the frame where your chain will sit. The holes in the bracket should be directly over the two holes you just drilled. Secure the bracket with the screws, using your cordless drill with the Phillips head drill bit.
Repeat the process for the pin end bracket.

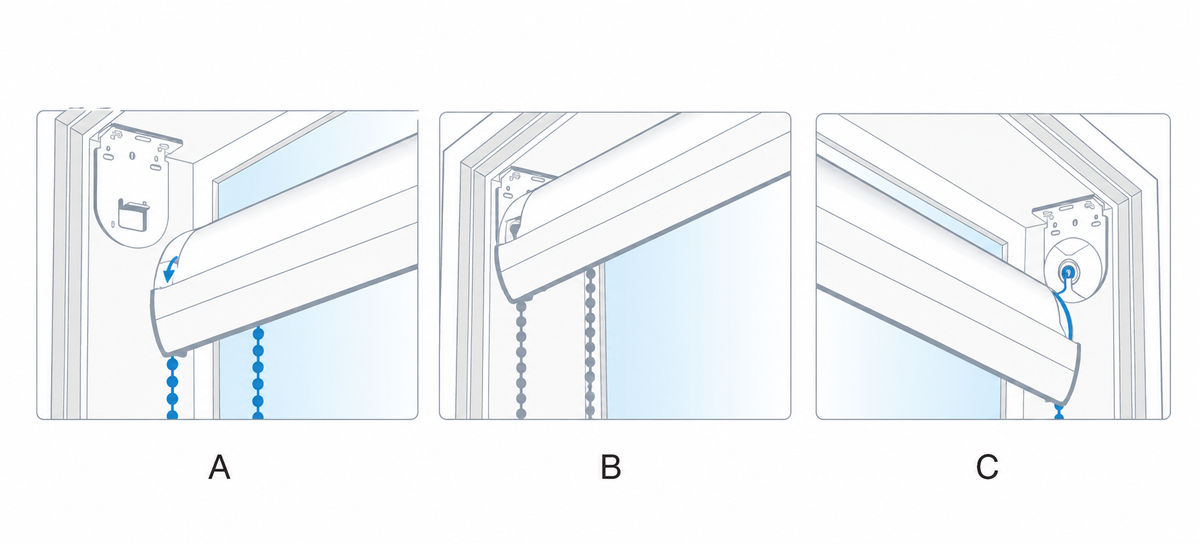

Step 4 – Click in blind
Pick up your roller blind and make sure your chain is on the same side as your chain bracket.
Gently fit the pin end into the pin end bracket.
Gently slot the chain end into the chain drive bracket.

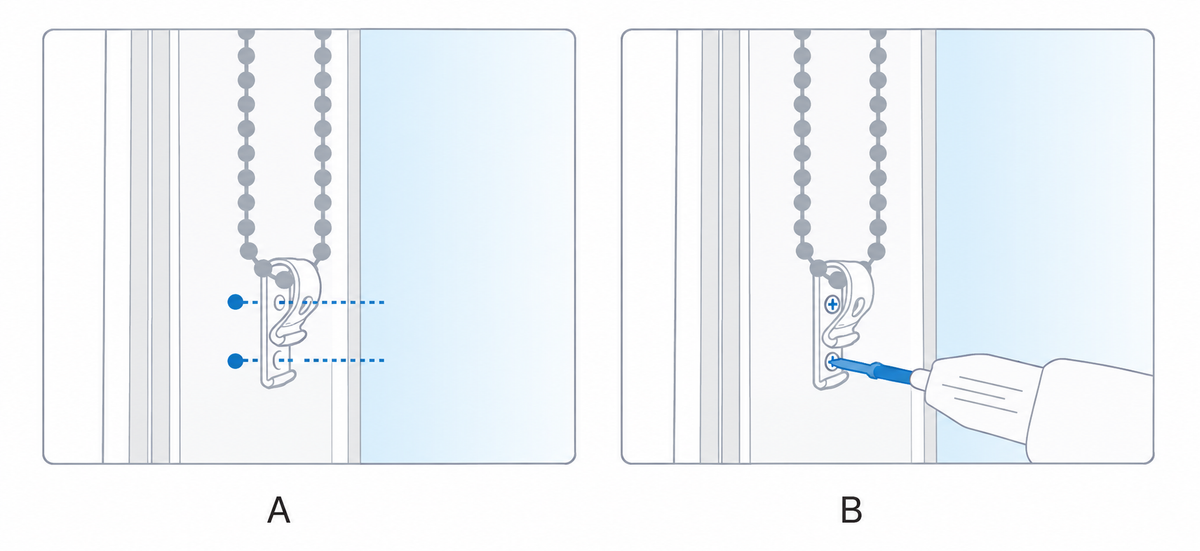

Step 15– child safe
Click the P clip onto the bottom of the chain loop, then hold it into position and mark a dot where the screw will attach the P clip to the frame. Remember the chain should hang down with minimal tension.
Screw the P clip onto your frame
Face Fit Guide
Step 1 – Preparation
Check and unpack your roller blind custom kit, make sure to put roller blind on a clean floor

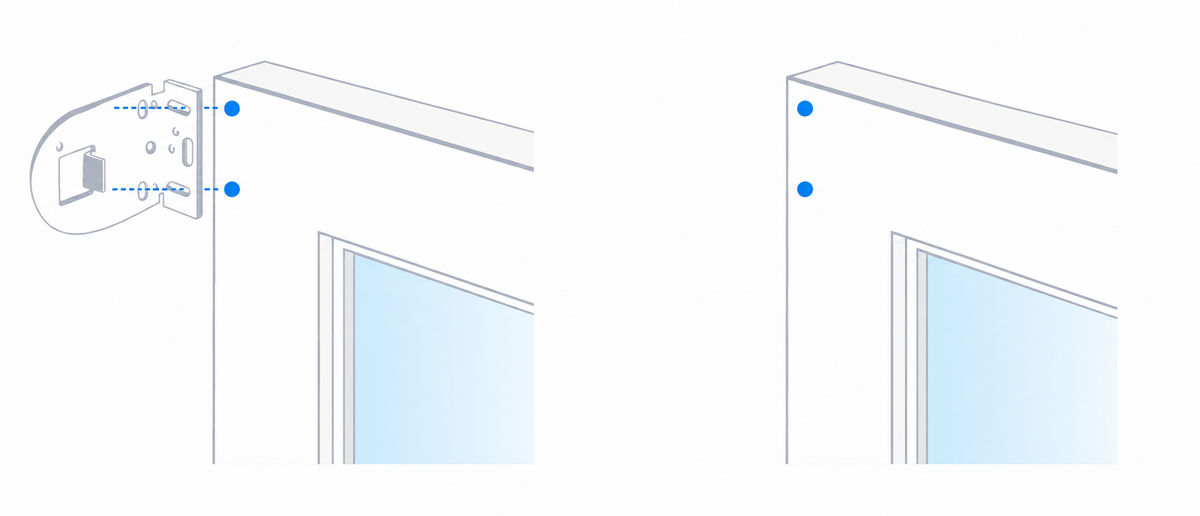

Step 2 – mark the position
Take your pencil and both brackets. Lift each bracket up into position and mark two level dots where the screws will attach the bracket to the frame.

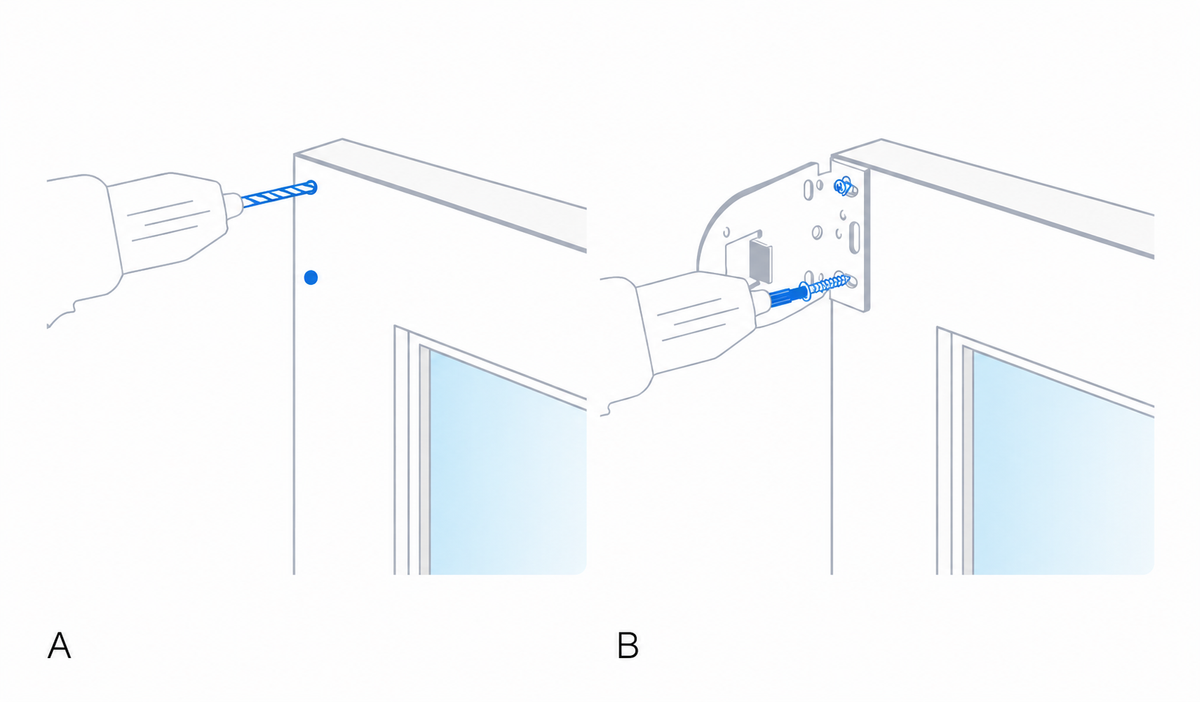

Step 3 – install bracket
Pre-drill 2 holes where you marked the two pencil dots.
Pick up the chain drive bracket and position it on the side of the frame where your chain will sit. The holes in the bracket should be directly over the two holes you just drilled. Secure the bracket with the screws, using your cordless drill with the Phillips head drill bit.
Repeat the process for the pin end bracket.

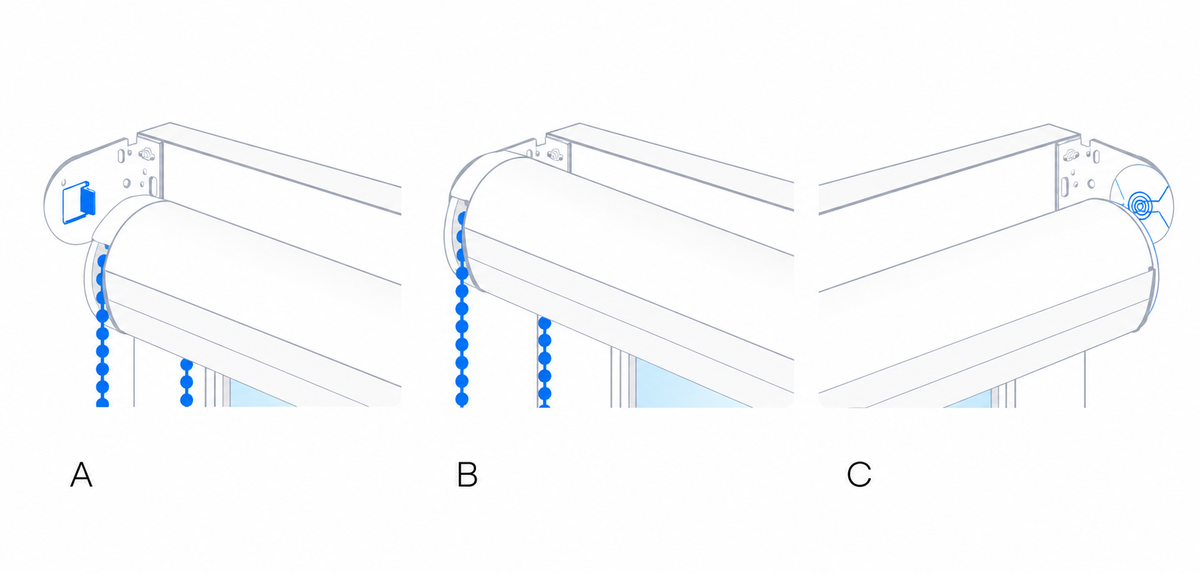

Step 4 – Click in blind
Pick up your roller blind and make sure your chain is on the same side as your chain bracket.
Gently fit the pin end into the pin end bracket.
Gently slot the chain end into the chain drive bracket.

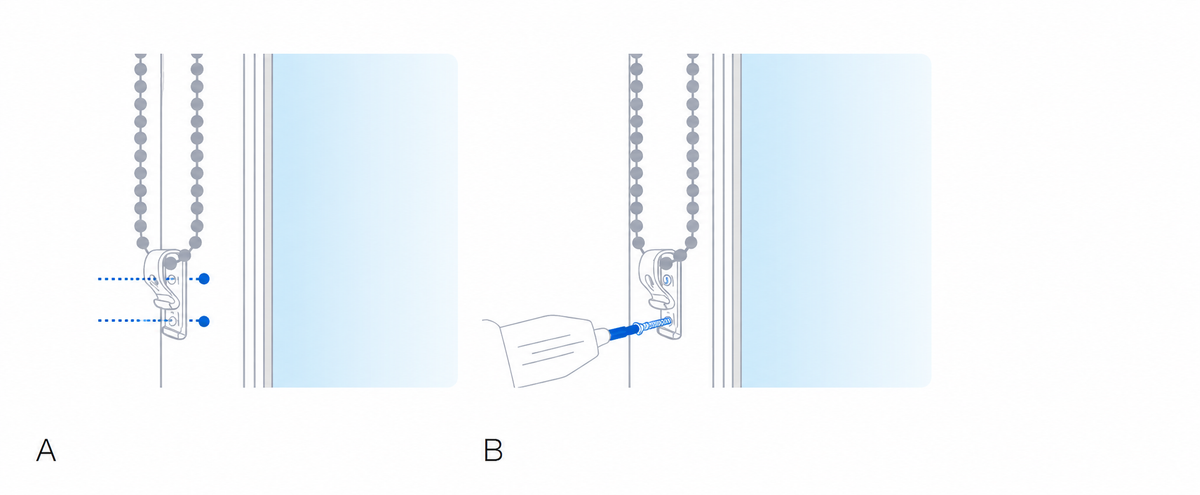

Step 5 – Child safe
Click the P clip onto the bottom of the chain loop, then hold it into position and mark a dot where the screw will attach the P clip to the frame. Remember the chain should hang down with minimal tension.Screw the P clip onto your frame
